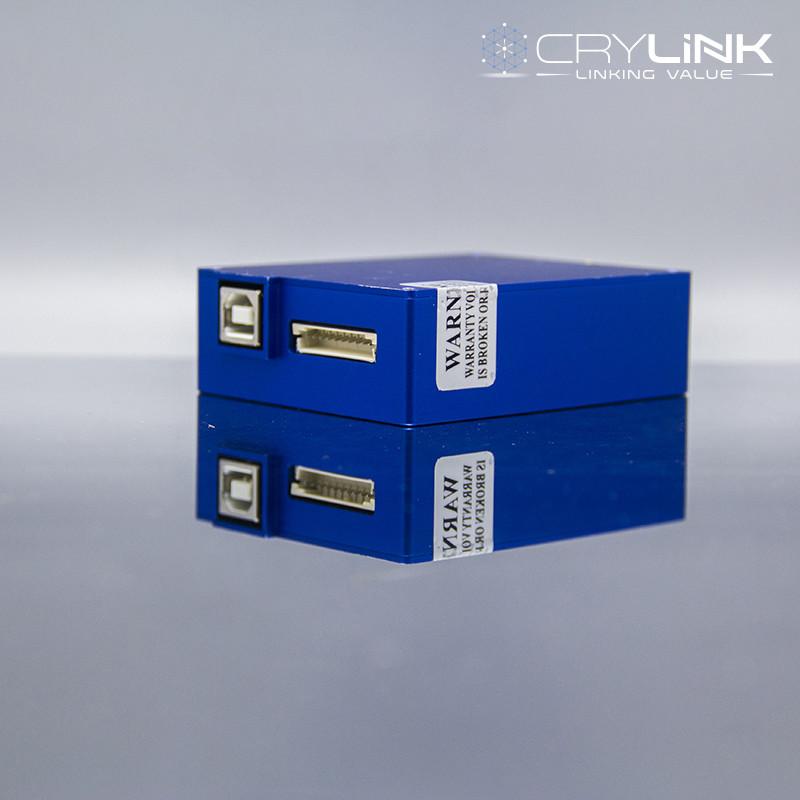

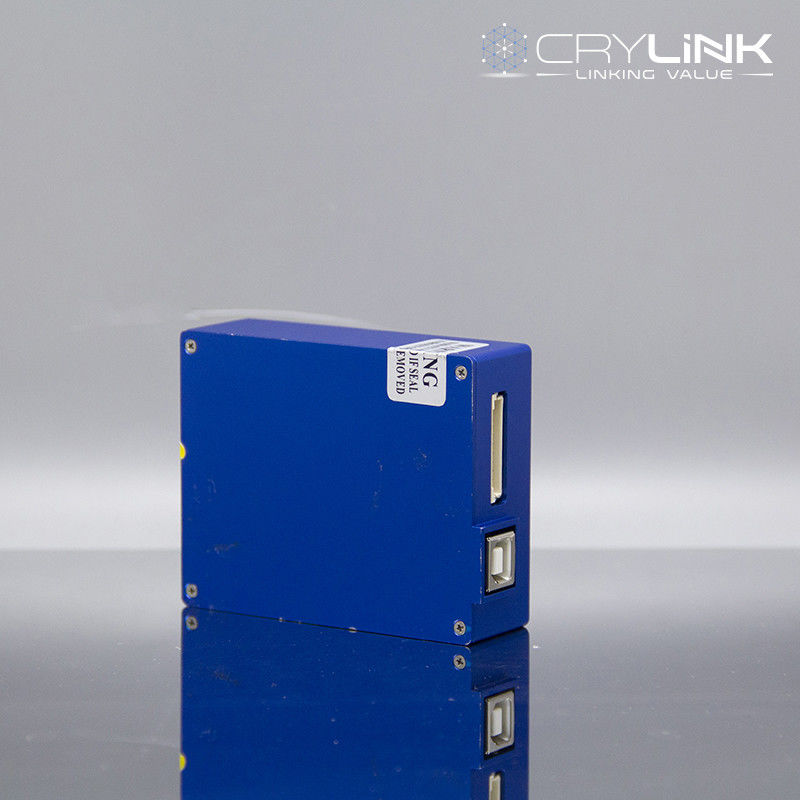

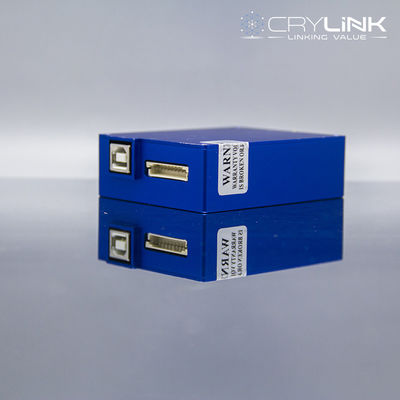

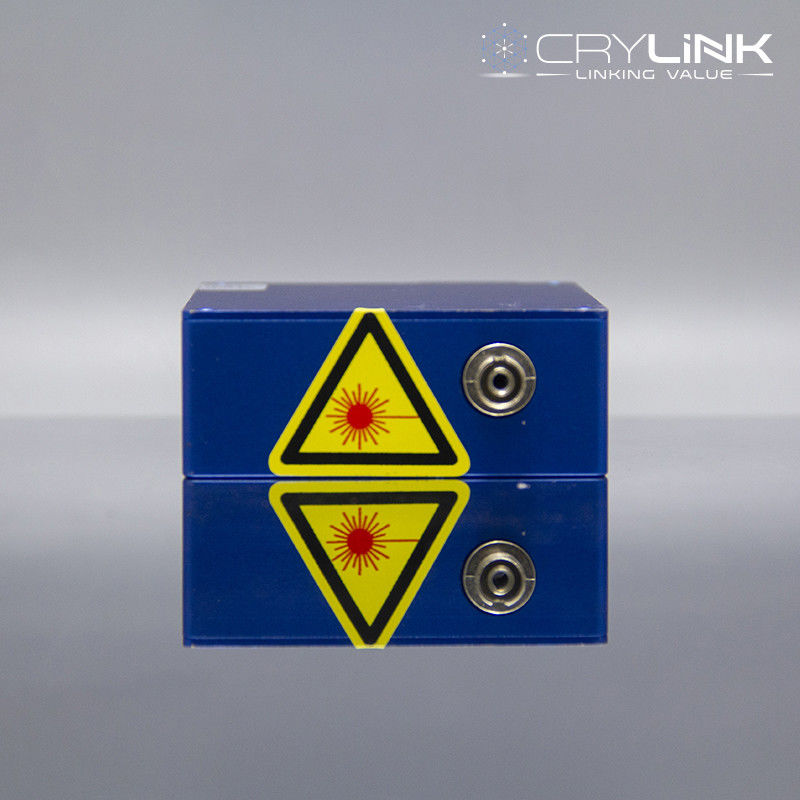

1nm Line Width 450nm Optical Fiber Solid State Laser

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 450nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Detail Information
High Light:

450nm Optical Solid State Laser

,

1nm Line Width Solid State Laser

,

Flow Cytometry Optical Fiber Laser


Product Description

450nm Optical Fiber Output Accurate Wavelength Laser System of AWM Series

(Download PDF)



Parameter

Model CL450-SIF(FA)-20mW-AWM004 CL450-SIF(FP)-20mW-AWM005 CL450-SIF(S)-20mW-AWM006
Central Wavelength (nm) 450 450 450
Wavelength Tolerance (nm) ±6 ±6 ±6
Output Power (mW) 20 20 20
Line Width (nm) 1 1 1
Fiber Interface APC FC/PC SMA905
Power Stability ±1.0%@8H ±1.0%@8H ±1.0%@8H



Model CL450-SIF(FA)-20mW-AWM004 CL450-SIF(FP)-20mW-AWM005 CL450-SIF(S)-20mW-AWM006
Power Adjustment Range 0~100% 0~100% 0~100%
Preheat Time (Min) 15 15 15
Modulation Input 1KHz TTL or Analog signal 0~5V
Control Interface USB, BNC USB, BNC USB, BNC
Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
System Power Consumption (W) <5 <5 <5
Storage Temperature (℃) 0~55 0~55 0~55
Storage Humidity (RH) 0~80% 0~80% 0~80%
Operating Temperature (℃) 10~35 10~35 10~35
System Weight (Kg) 2.2 2.2 2.2
System Size (mm) 150×102×200 150×102×200 150×102×200



1nm Line Width 450nm Optical Fiber Solid State Laser 0 1nm Line Width 450nm Optical Fiber Solid State Laser 1
1nm Line Width 450nm Optical Fiber Solid State Laser 2 1nm Line Width 450nm Optical Fiber Solid State Laser 3



Feature

  • Built-in TEC, power stability is better than ± 1% @ 8H
  • Multiple wavelengths available
  • Including host computer control, short circuit protection and other functions
  • Multimode fiber optional

Application

  • Flow cytometry
  • Confocal microscopy
  • Fluorescence excitation
  • Granularity measurement
  • Super-resolution microscopy
