355nm 2ns Microchip Laser System of MCA Series

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 355nm 2ns Microchip Laser System of MCA Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

2ns Solid State Laser

,

355nm Solid State Laser

,

Optical Metrology Solid State Laser


Product Description

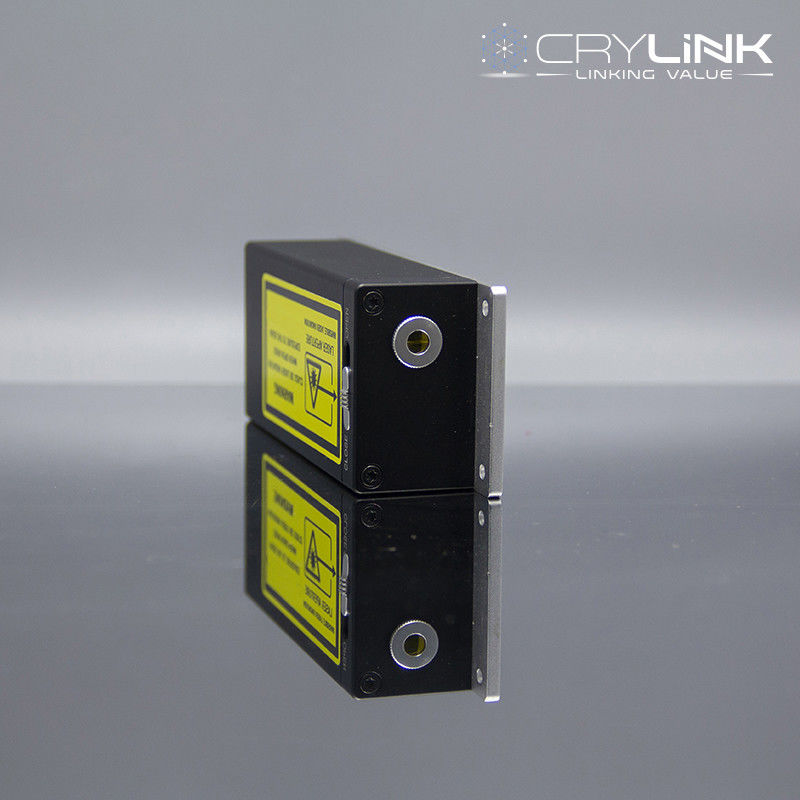

355nm 2ns Microchip Laser System of MCA Series

MCA series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application.(Download PDF)



Model Repetition Frequency Average Power Output Energy Pulse Width
CL355-100Hz-40μJ-MCA007 0.1 kHz 4 mW 40 uJ 2 ns
CL355-100Hz-240μJ-MCA008 0.1 kHz 20 mW 240 uJ 2 ns
CL355-1KHz-30μJ-MCA009 1 kHz 30 mW 30 uJ 2 ns
CL355-5KHz-10μJ-MCA010 5 kHz 50 mW 10 uJ 1.5 ns
CL355-10KHz-7μJ-MCA011 10 kHz 70 mW 7 uJ 1.5 ns
CL355-20KHz-7μJ-MCA012 20 kHz 140 mW 7 uJ 1.5 ns





  • Pulse width up to 1.5ns
  • Pulse energy up to 200 μJ
  • External pump source fiber pump pulse energy can reach 1.2mJ
  • Repetition frequency up to 20kHz
  • Beam mode is TEM00
  • Fully sealed design, high reliability



  • Lidar
  • Optical Parametric Oscillating Pump Source
  • Laser Ranging
  • Laser induced breakdown spectroscopy
  • Atmospheric monitoring
  • Laser ultrasonic inspection
  • Optical metrology
  • Biomedical Science
  • Laser ionization mass spectrometry
  • Laser-induced fluorescence
  • 3D scanning and imaging
