355nm Microchip Laser System of MD Series

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 355nm Microchip Laser System of MD Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

350ps Microchip Solid State Laser


355nm Microchip Solid State Laser


MCD Series Solid State Laser

Product Description

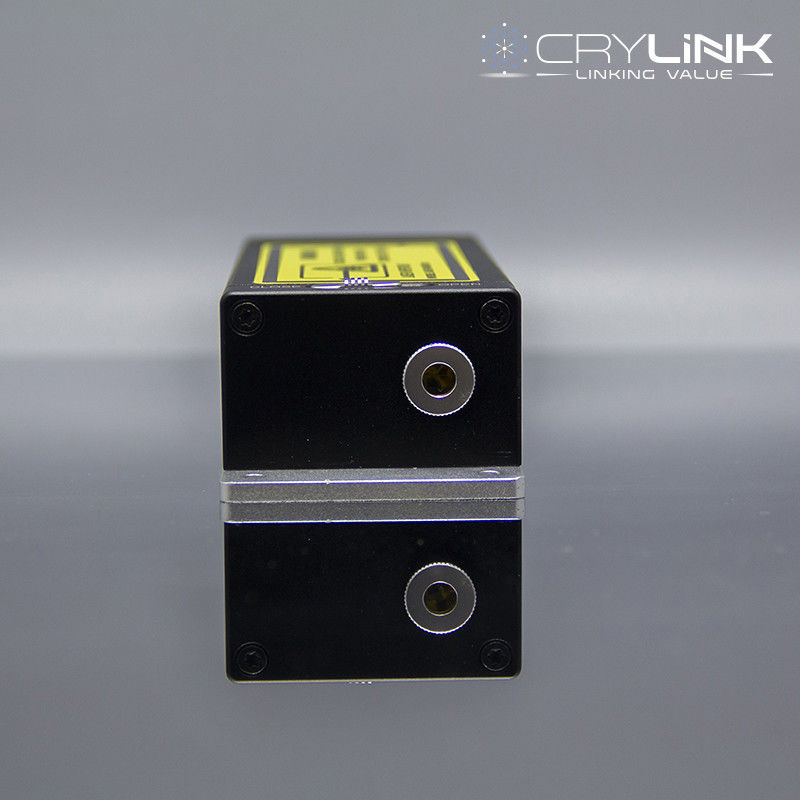

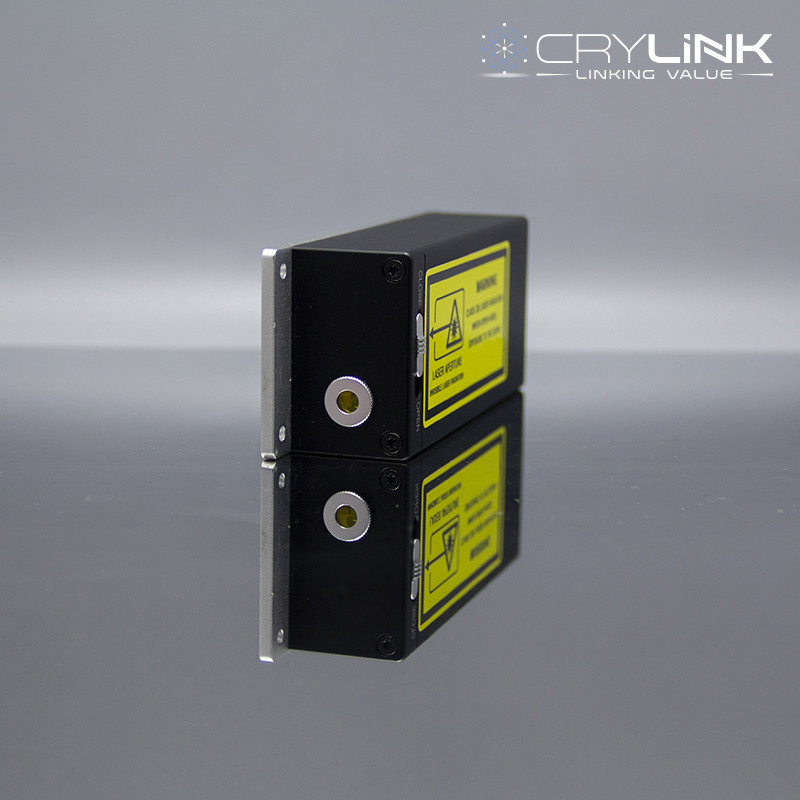

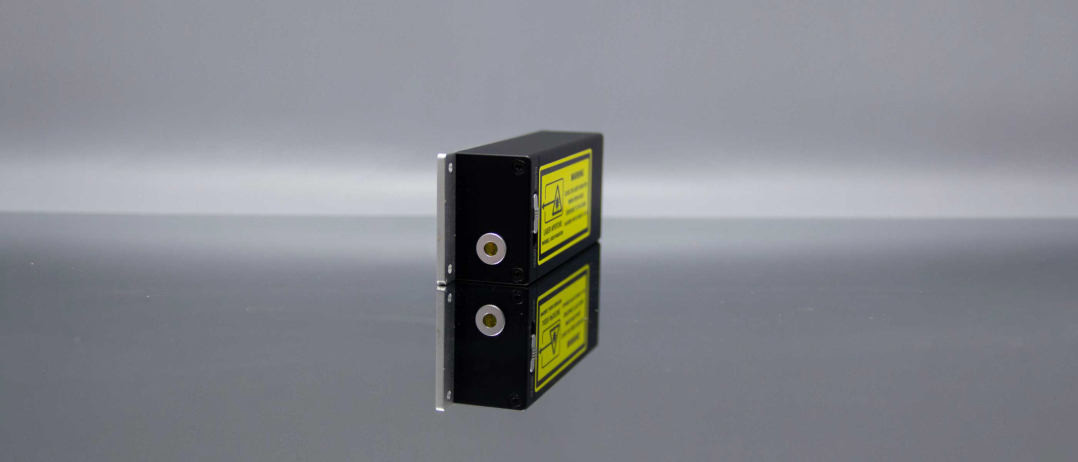

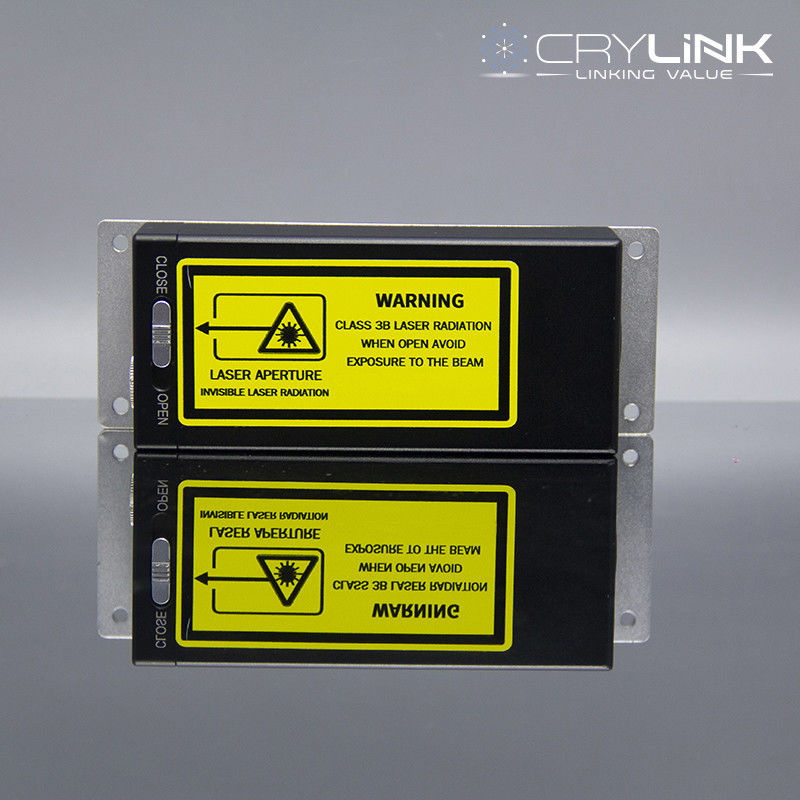

355nm 350ps Microchip Laser System of MCD Series

MCD series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. This series of lasers have great advantages in seed light, laser micromachining, laser measurement and other applications. We also provide 1064nm and 532nm isolators.(Download PDF)


Model Repetition Frequency Average Power Output Energy Pulse Width
CL355-100Hz-30μJ-MCD005 0.1 kHz 3 mW 30 uJ 300 ps
CL355-100Hz-100μJ-MCD006 0.1 kHz 10 mW 100 uJ 300 ps
CL355-500Hz-25μJ-MCD007 0.5 kHz 12 mW 25 uJ 300 ps
CL355-1KHz-20μJ-MCD008 1 kHz 20 mW 20 uJ 300 ps


  • Pulse width up to 300ps
  • Pulse energy up to 150 μJ
  • External pump source fiber pump pulse energy can reach 360μJ
  • Maximum repetition frequency up to 1kHz
  • Beam mode is TEM00
  • Fully sealed design, high reliability
  • Seed source
  • Laser micromachining
  • Non-linear optical measurement
  • Laser-induced fluorescence
  • Laser ionization mass spectrometry
  • Fluorescence lifetime measurement
