355nm Microchip Laser System of MH Series

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 355nm Microchip Laser System of MH Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

Biophotonics Solid State Laser

,

MCH Series Solid State Laser

,

350ps Solid State Laser


Product Description

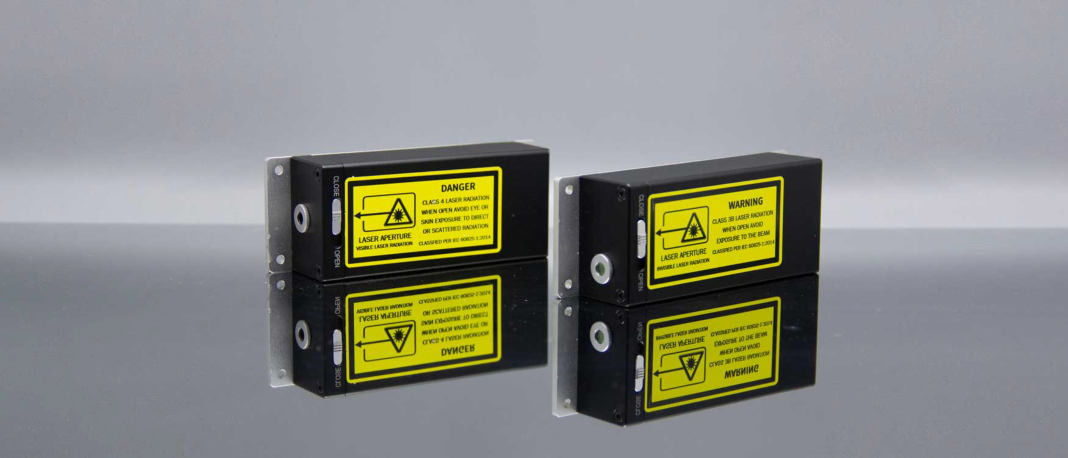

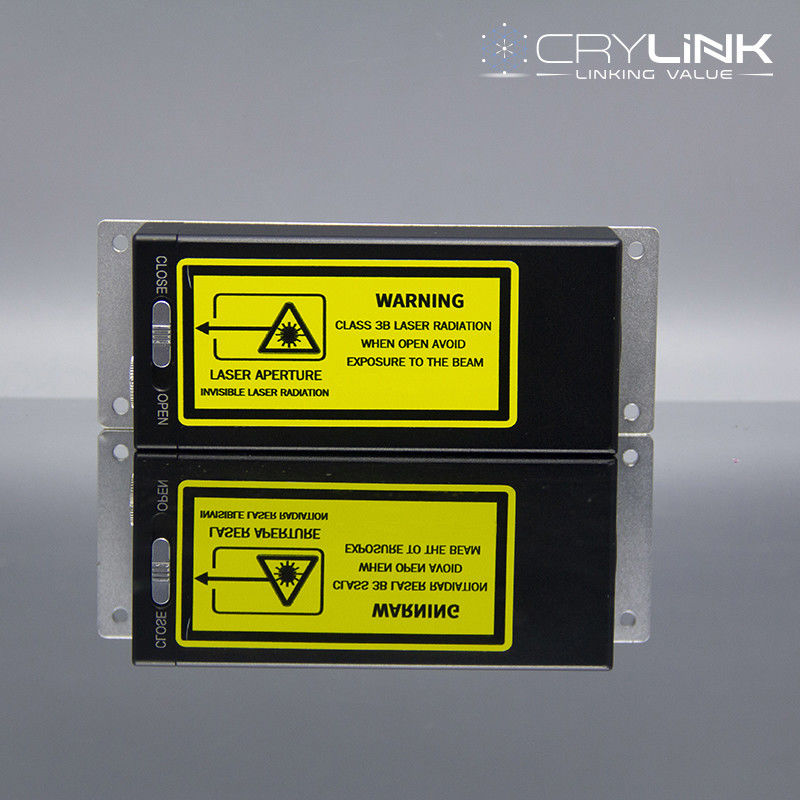

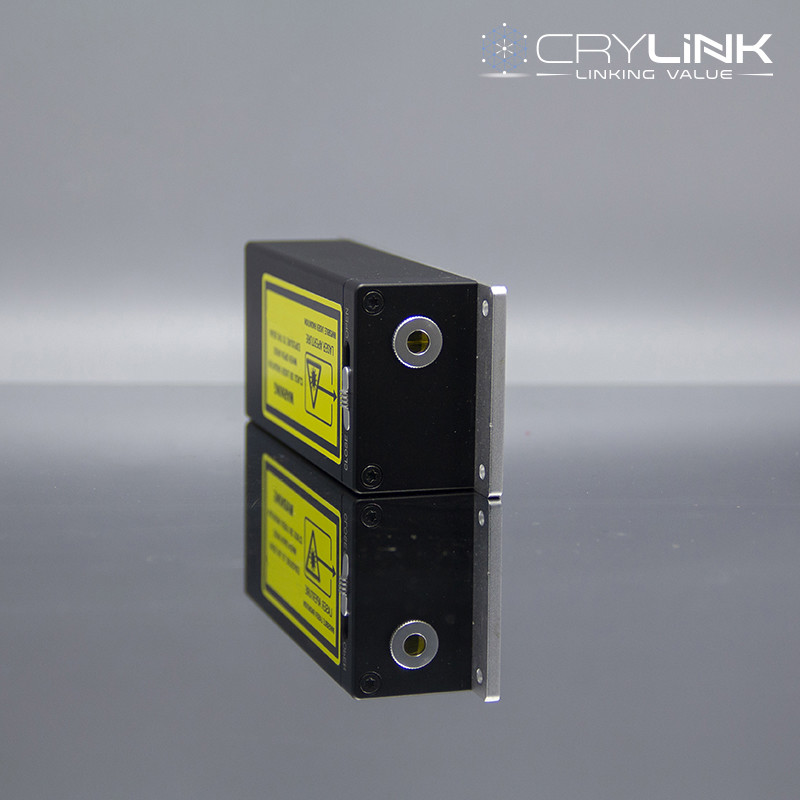

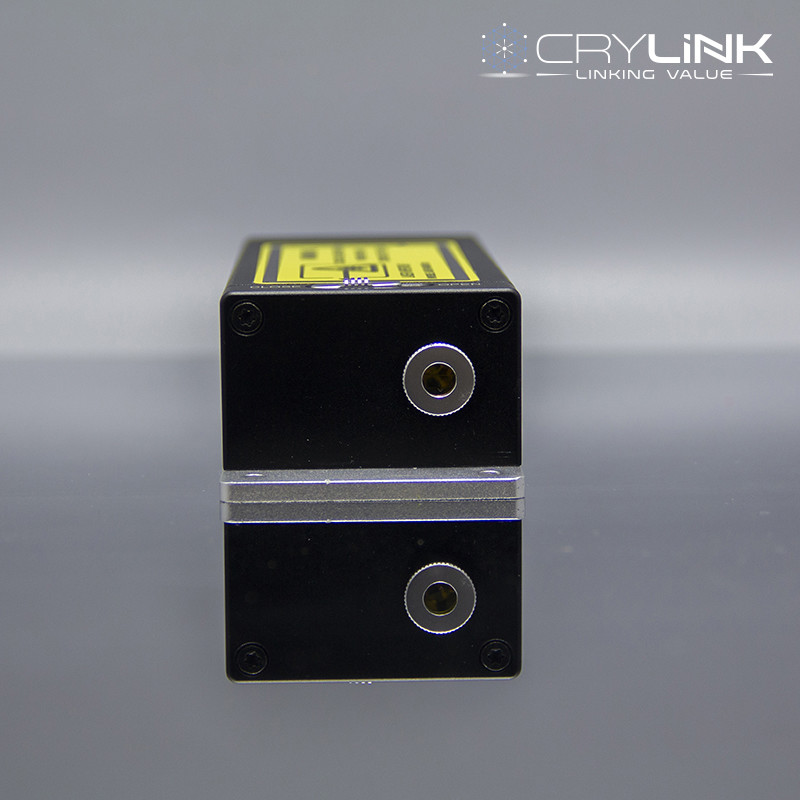

355nm 350ps Microchip Laser System of MCH Series

MCH series high repetition rate microchip laser series can achieve high repetition rate while the pulse width is less than 300ps. The product is a passively Q-switched solid-state laser based on semiconductor pump, with stable energy, good beam quality and single longitudinal mode operation. The laser is designed with full seal, small size, convenient for user installation and integration. The system supports internal and external triggering and can be used for secondary development.(Download PDF)

Optical Parameter

  CL355-1KHz-8μJ-MCH003 CL355-5KHz-3μJ-MCD004 CL355-10KHz-2μJ-MCD005
Wavelength (nm) 355 355 355
Repetition Frequency (kHz) 1 5 10
Average Powe (mW) 8 15 20
Output Energy (uJ) 8 3 2
Pulse Width (ps) 300 280 280
Power Stability (8h) ±3% ±3% ±3%
Beam Mode TEM00 TEM00 TEM00
Full-Angle Divergence Angle Typ.
(Mrad) Level @ 1/e2
<4 <4 <5
Vertical @ 1 / e2 <4 <4 <5
Polarization Characteristics >100:1 >100:1 >100:1

System Parameter

  CL355-1KHz-8μJ-MCH003 CL355-5KHz-3μJ-MCD004 CL355-10KHz-2μJ-MCD005
Power Input 100-240 VAC,50/60Hz 100-240 VAC,50/60Hz 100-240 VAC,50/60Hz
Modulation Input TTL0-5V,SMA interface TTL0-5V,SMA interface TTL0-5V,SMA interface
Control Interface RS232,USB RS232,USB RS232,USB
System Power Consumption (W) <25 <35 <40
Power Supply Size (W × H × L, mm) 150×76×146 150×76×146 150×76×146
Laser Head Size (W × H × L, mm) 45×30×120 45×30×120 45×30×120
Working Temperature (℃) 15-35 15-35 15-35
Storage Temperature (℃) 0-50 0-50 0-50



  • Pulse width up to 280ps
  • Pulse energy up to 32µJ
  • Maximum repetition frequency up to 20KHz
  • Beam mode is TEM00



  • Laser micromachining
  • Seed source
  • Ultrasound imaging
  • analytical chemistry
  • Time-resolved Raman spectroscopy
  • Biophotonics
