| Brand Name: | CRYLINK |
|---|---|
| Certification: | ISO9001 |
| Model Number: | 405nm Optical Fiber Output Accurate Wavelength Laser System of AWO 405nm series |
| Minimum Order Quantity: | 1 |
| Price: | custom |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| High Light: | 405nm Solid State Laser,TEC Solid State Laser,30MW Solid State Laser |
||
|---|---|---|---|
The quasi wavelength semiconductor laser module introduced by our company has a variety of wavelengths to choose from, equipped with standard input / output interface, which can be easily embedded into the user’s whole system and achieve stable power output. This series of products adopt optical fiber coupling output mode, equipped with TEC refrigeration module, can provide customized and secondary development services according to customer requirements.(Download PDF)

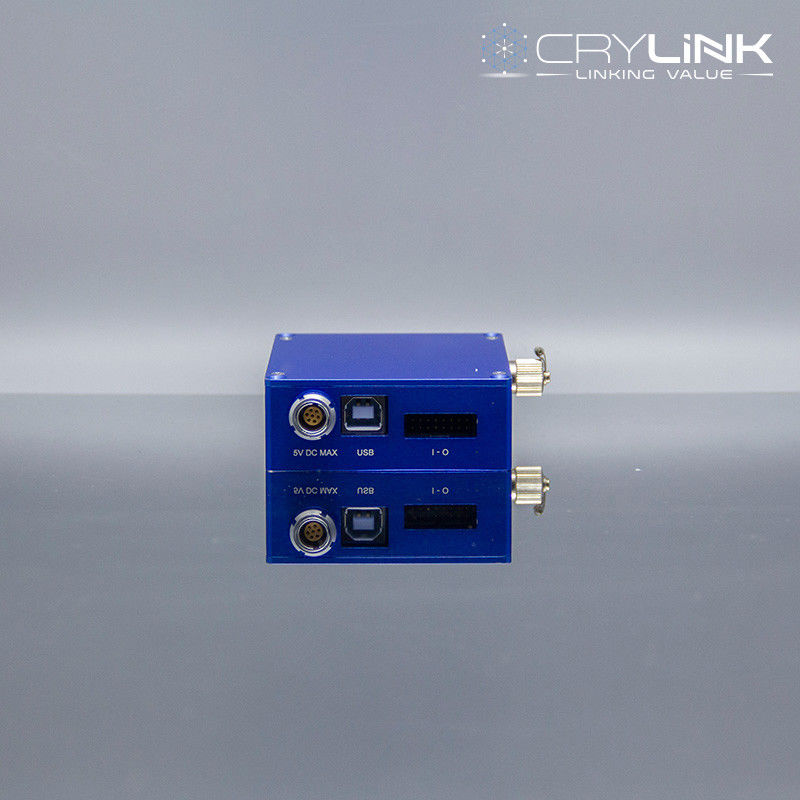

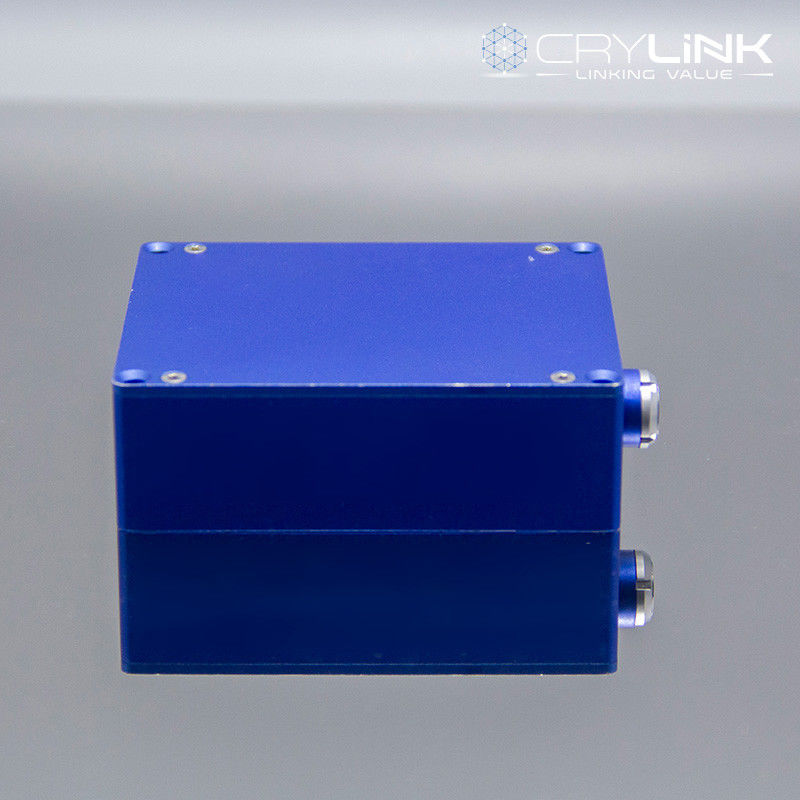

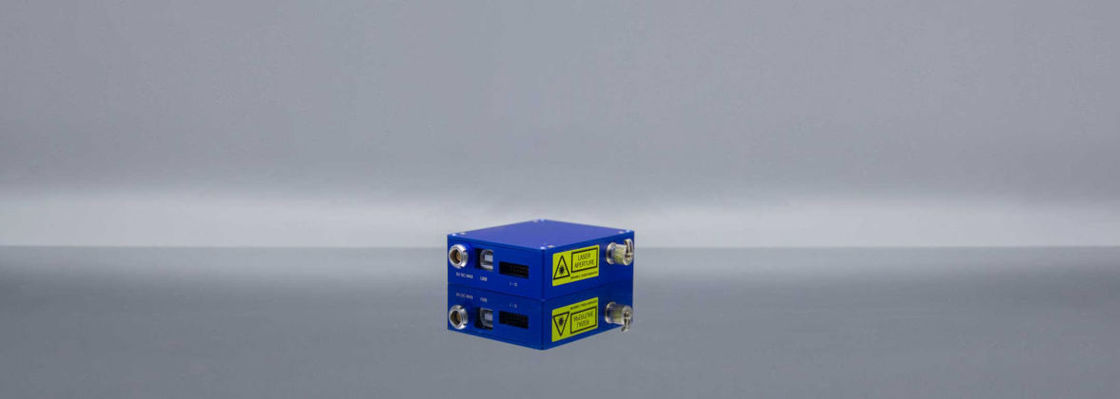

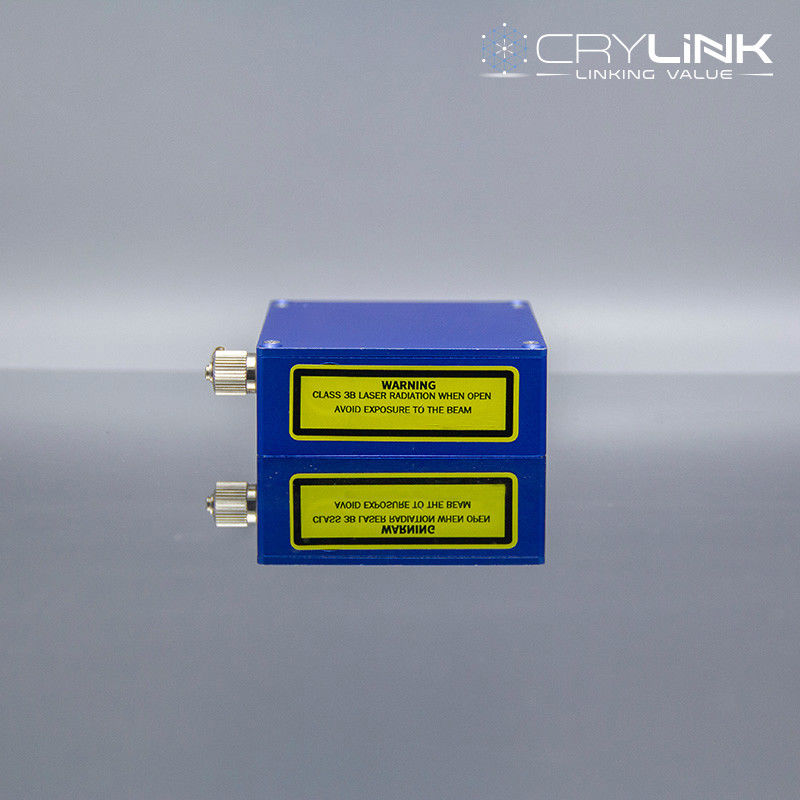

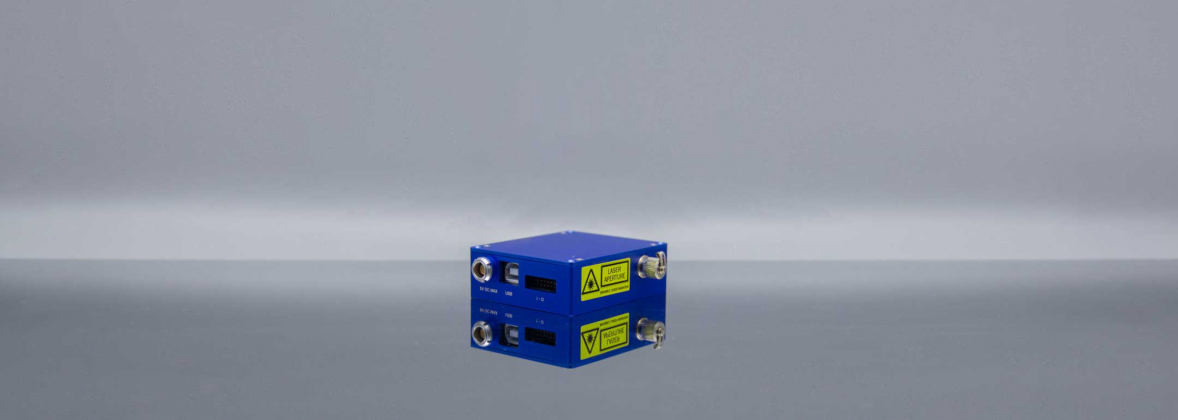

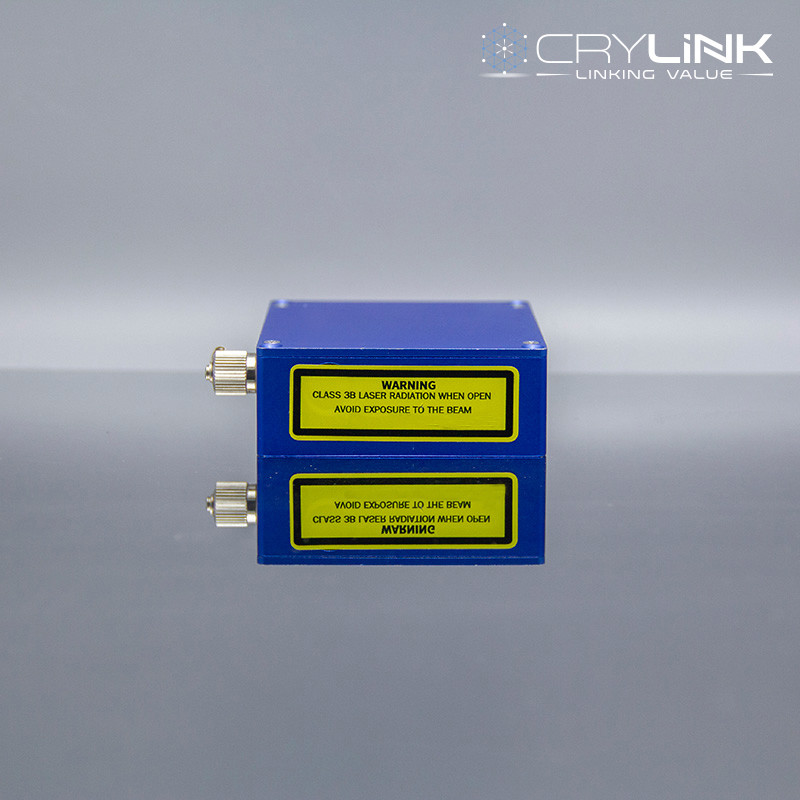

405nm Optical Fiber Output Accurate Wavelength Laser System of AWO 405nm series
Model and Parameter
Model
CL405-SIF(FA)-30mW-AWO001
CL405-SIF(FP)-30mW-AWM002
Optical Parameter
Central Wavelength (nm)
405
405
Wavelength Tolerance (nm)
±10
±10
Output Power (mW)
30
30
Line Width (nm)
<6
<6
Power Stability
±1.0%@8H
±1.0%@8H
System Parameter
Power Adjustment Range
0～100%
0～100%
Preheat Time (Min)
15
15
Modulation Input
PH2.0-10P
PH2.0-10P
Fiber Interface
FC/APC
FC/PC
Power Input
4.9~5.1
4.9~5.1
System Power Consumption (W)
<4
<4
Storage Humidity (RH)
0~80%
0~80%
Storage Temperature (℃)
0～55
0～55
Operating Temperature (℃)
10~35
10~35
System Weight (g)
<130
<130
System Size (mm)
76.2×63.5×22
76.2×63.5×22
Feature
Application
