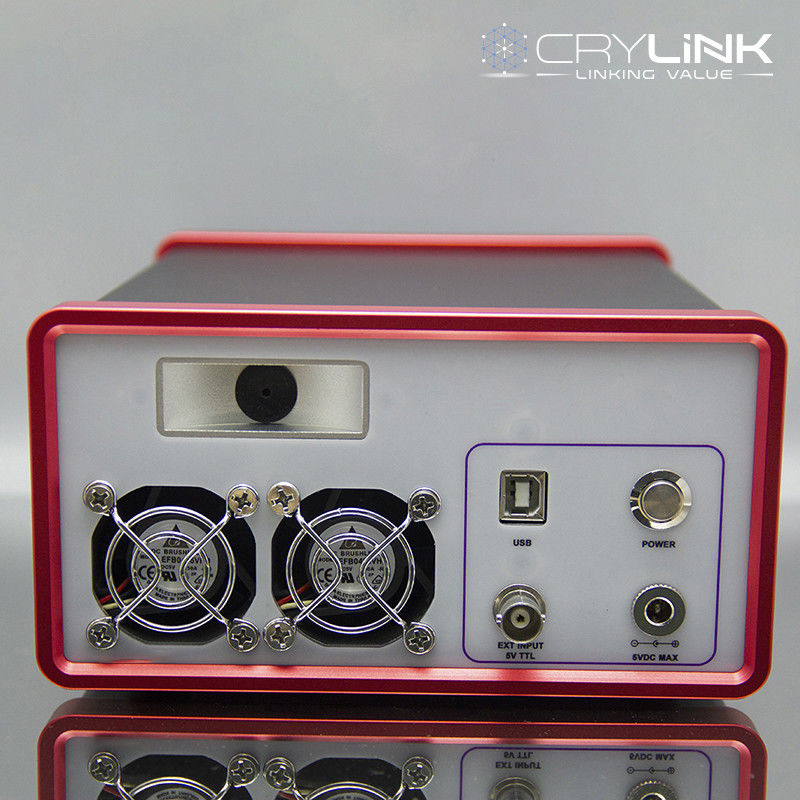

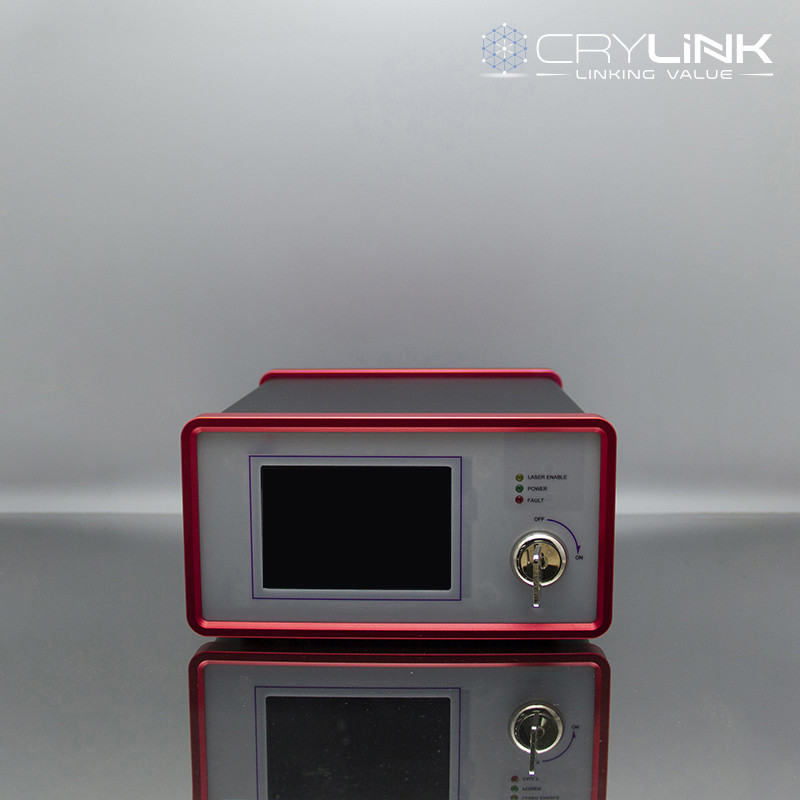

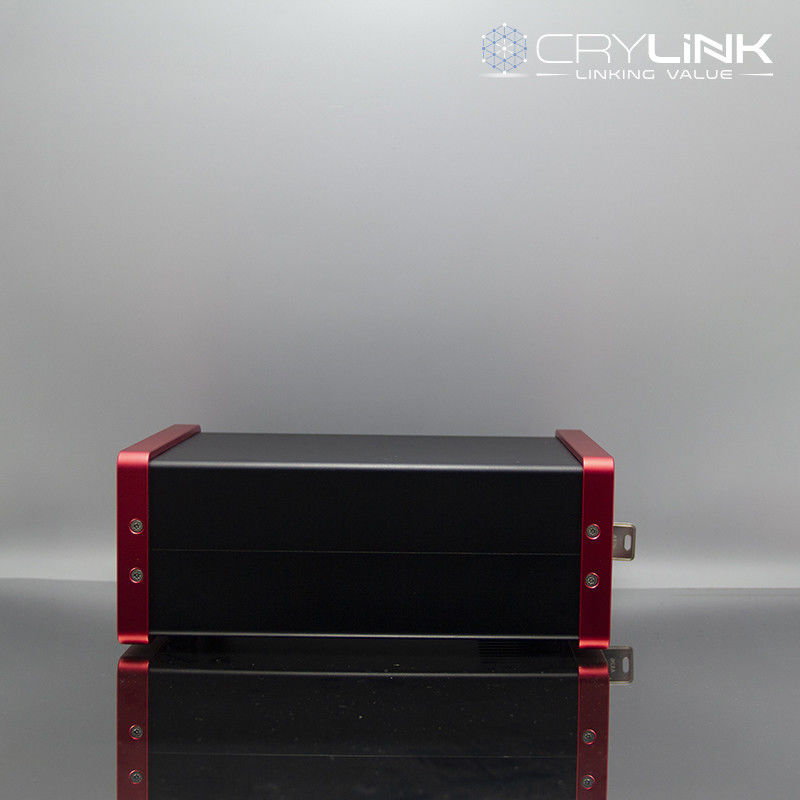

50mW 532nm Narrow Linewidth Laser For Holographic Detection

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 532nm Narrow Linewidth Laser
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

532nm Narrow Linewidth Laser

,

Holographic Detection Narrow Linewidth Laser


Product Description

532nm Narrow Linewidth Laser

Narrow linewidth laser system is our special product. This series of products are compact in structure, portable and convenient. The core technologies such as short cavity method, VBG wavelength locking, directional optical feedback, built-in semiconductor refrigeration, etc. are used to realize narrow linewidth, stable power and stable spectral output of laser.(Download PDF)

Model   CL532-MIF(S)-50mW-NLM001 CL532-MIF(FP)-50mW-NLM002
Optical Parameter Central Wavelength (nm) 532 532
Wavelength Tolerance (nm) ±0.5 ±0.5
Output Power (mW) 50 50
Line Width (nm) <0.1 <0.1
Wavelength Stability ±0.005nm @8H Typ. ±0.005nm @8H Typ.
Power Stability ±1.5% @8H Typ. ±1.5% @8H Typ.
Side Mode Rejection Ratio (dB) 40 40
System Parameter Power Adjustment Range 0~100% 0~100%
Preheat Time (min) 15 15
Modulation Input 1kHz TTLOr Analog signal0-5V 1kHz TTLOr Analog signal0-5V
Control Interface USB,BNC USB,BNC
Fiber Interface SMA905 FC/PC
Adaptive Optical Fiber 105µm,0.22NA 105µm,0.22NA
Power Input 100V-240V 50/60Hz 100V-240V 50/60Hz
System Power Consumption <7W Typ. <7W Typ.
Storage Temperature (℃) -10~60 -10~60
Storage Humidity 0~80%RH 0~80%RH
Operating Temperature (℃) 10~35 10~35
System Weight (Kg) 2.5 2.5
System Size (mm) 150ⅹ102ⅹ200 150ⅹ102ⅹ200



  • Line width <0.1nm
  • Frequency stability better than ±0.005nm@8H
  • Side mode rejection ratio is better than 40dB (60dB optional)
  • Portable operation, temperature drift <0.007nm / ℃, VBG wave lock
  • Built-in TEC, power stability is better than ± 1.5%
  • Including host computer control, emergency stop switch, short circuit protection and other functions



  • Raman spectroscopy
  • Fluorescence spectrum detection
  • Holographic detection
  • Up-conversion material
