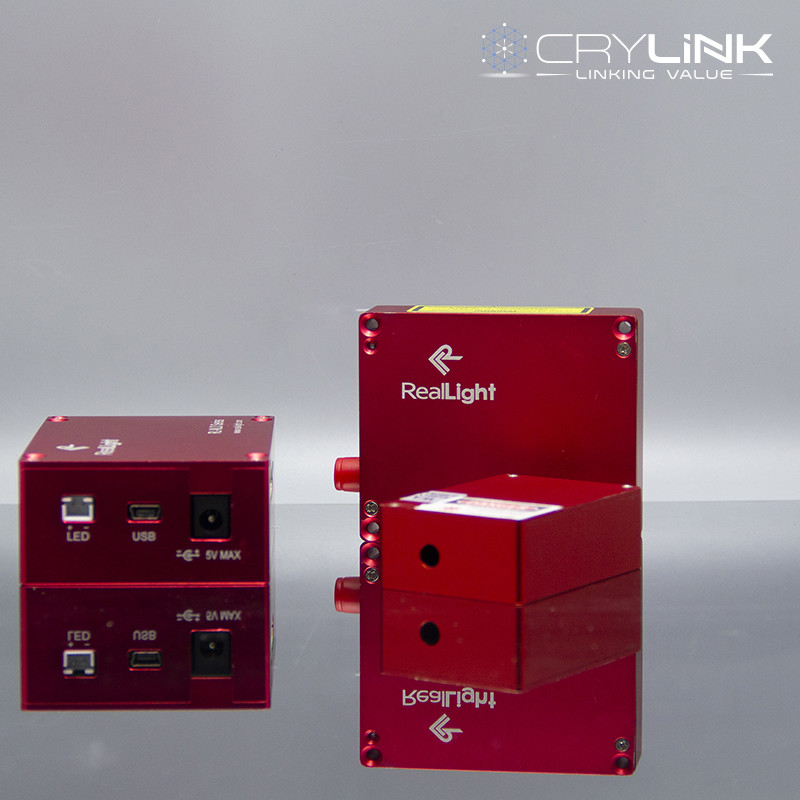

Flow Cytometry 785nm Optical Solid State Laser

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 785nm Optical Fiber Output Accurate Wavelength Laser Module of AWO Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

785nm Optical Solid State Laser


Flow Cytometry Solid State Laser


ISO9001 Solid State Laser

Product Description

785nm Optical Fiber Output Accurate Wavelength Laser Module of AWO Series

The quasi wavelength semiconductor laser module introduced by our company has a variety of wavelengths to choose from, equipped with standard input / output interface, which can be easily embedded into the user’s whole system and achieve stable power output. This series of products adopt optical fiber coupling output mode, equipped with TEC refrigeration module, can provide customized and secondary development services according to customer requirements.(Download PDF)

Model   CL785-SIF(FA)-40mW-AWO009 CL785-SIF(FP)-40mW-AWO010
Optical Parameter Central Wavelength (nm) 785 785
Wavelength Tolerance (nm) ±10 ±10
Output Power (mW) 40 40
Line Width (nm) <6 <6
Power Stability ±1.0%@8H ±1.0%@8H
System Parameter Power Adjustment Range 0~100% 0~100%
Preheat Time (Min) 15 15
Modulation Input PH2.0-10P PH2.0-10P
Fiberl Interface FC/APC FC/PC
Power Input 4.9~5.1 4.9~5.1
System Power Consumption (W) <4 <4
Storage Humidity (RH) 0~80% 0~80%
Storage Temperature (℃) 0~55 0~55
Operating Temperature (℃) 10~35 10~35
System Weight (g) <130 <130
System Size (mm) 76.2×63.5×22 76.2×63.5×22


  • Power stability is better than ± 1% @ 8H
  • Built-in TEC, typical power consumption <4W
  • Small size, 76.2ⅹ63.5ⅹ22mm
  • Optional USB control interface, hardware lock


  • Fluorescence Spectrometer
  • Laser particle size analyze
  • Flow cytometry
  • Confocal microscope
  • Raman spectrometer
