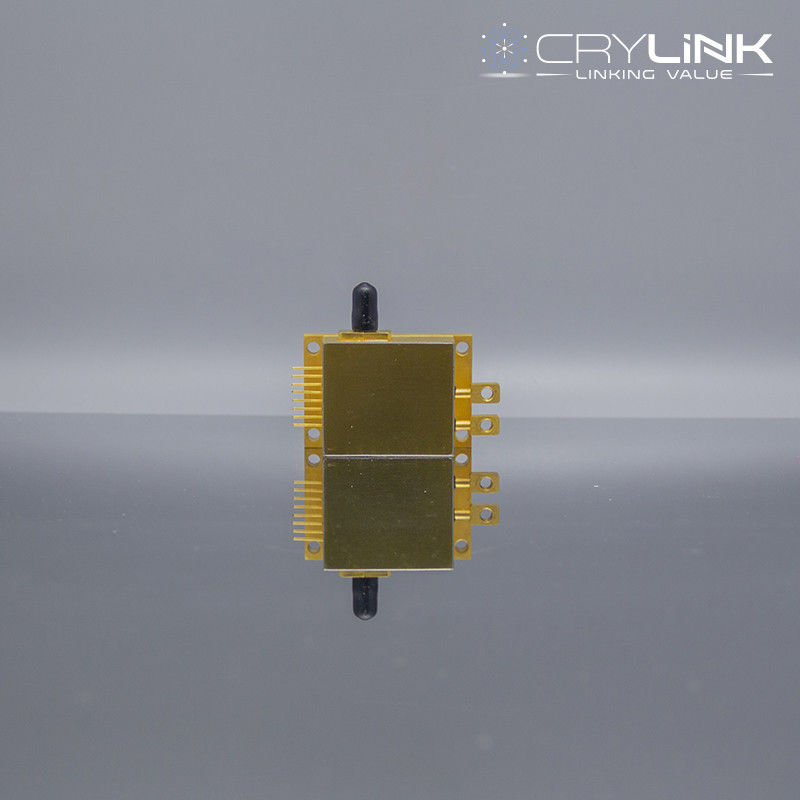

Medical 0.22NA 6W 1064nm Semiconductor Laser Module

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 1064nm Semiconductor Laser Module
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

1064nm Semiconductor Laser Module


6W Semiconductor Laser Module


0.22NA Semiconductor Laser Module

Product Description

1064nm Semiconductor Laser Module


(Download PDF)

Model   CL1064-3-6W-SML039
Optical Parameter Continuous Output Power (W) 6
Center Wavelength (nm) 1064±3
Spectral Width (nm) <6
Characteristics of Wavelength With Temperature (nm/℃) 0.3
Indication Light Output Power (mW) 2
Wavelength (nm) 650±10
Voltage (V) 2.2,5.0
Electrical Parameter Threshold Current (A) 0.33
Operating Current (A) 3.2
Operating Voltage (V) 5.7
Differential Efficiency (W/A) 2
PD Current (µA) <3000
Thermistor Parameters (kΩ/β(25℃)) 10±5%/3450
Optical Fiber Fiber Diameter (um) 200
Connector SMA905
Other Parameter Operating Temperature (℃) 10-30
Operating Relative Humidity (%) 75
Storage Temperature (℃) -20~70
Storage Relative Humidity (%) 90
Pin Soldering Temperature,Max (℃) 250(10 Sec.)


  • Output power:6W
  • Wavelength:1064±6nm
  • Fiber core diameter:200 µm
  • Numerical aperture:0.22NA
  • Indicator light: 650nm


  • Medical application
  • Material processing
