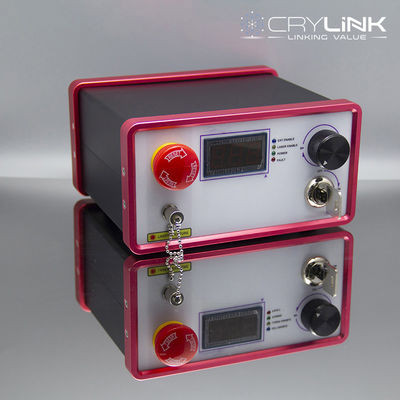

Solid State 830nm Narrow Linewidth Laser NLM Series

Basic Information
Brand Name: CRYLINK
Certification: ISO9001
Model Number: 830nm Narrow Linewidth Laser System of NLM Series
Minimum Order Quantity: 1
Price: custom
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

830nm Narrow Linewidth Laser


Solid State Narrow Linewidth Laser


NLM Series Narrow Linewidth Laser

Product Description

830nm Narrow Linewidth Laser System of NLM Series

Narrow linewidth laser system is our special product. This series of products are compact in structure, portable and convenient. The core technologies such as short cavity method, VBG wavelength locking, directional optical feedback, built-in semiconductor refrigeration, etc. are used to realize narrow linewidth, stable power and stable spectral output of laser.(Download PDF)

Model   CL830-MSIF(S)-500mW-NLM010 CL830-MSIF(FP)-500mW-NLM011
Central Wavelength (nm) 830 830
Output Power (mW) 500 500
Wavelength Tolerance (nm) ±0.5 ±0.5
Line Width (nm) <0.1 <0.1
Wavelength Stability ±0.005nm @8H Typ. ±0.005nm @8H Typ.
Power Stability ±1.5% @8H Typ. ±1.5% @8H Typ.
Power Adjustment Range 0~100% 0~100%
Preheat Time (min) 15 15
Modulation Input 1kHz TTLOr Analog signal0-5V 1kHz TTLOr Analog signal0-5V
Control Interface USB,BNC USB,BNC
Fiber Interface SMA905 FC/PC
Adaptive Optical Fiber 105um,0.22NA 105um,0.22NA
Power Input 100V-240V 50/60Hz 100V-240V 50/60Hz
Storage Temperature (℃) -10~60℃ -10~60℃
Storage Humidity 0~80%RH 0~80%RH
Operating Temperature (℃) 10~35℃ 10~35℃
System Weight (Kg) 2.5 2.5
Laser Power Size (mm) 150ⅹ102ⅹ200 150ⅹ102ⅹ200


  • Line width <0.1nm
  • Frequency stability better than ±0.005nm@8H
  • Side mode rejection ratio is better than 40dB (60dB optional)
  • Portable operation, temperature drift <0.007nm / ℃, VBG wave lock
  • Built-in TEC, power stability is better than ± 1.5%
  • Including host computer control, emergency stop switch, short circuit protection and other functions
  • Raman spectroscopy
  • Fluorescence spectrum detection
  • Holographic detection
  • Up-conversion material
