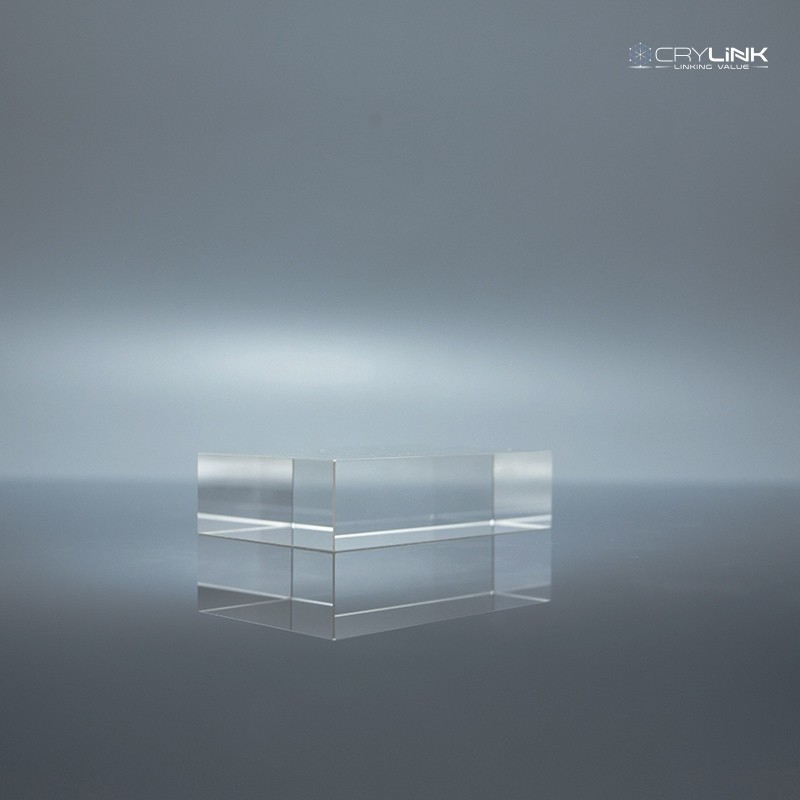

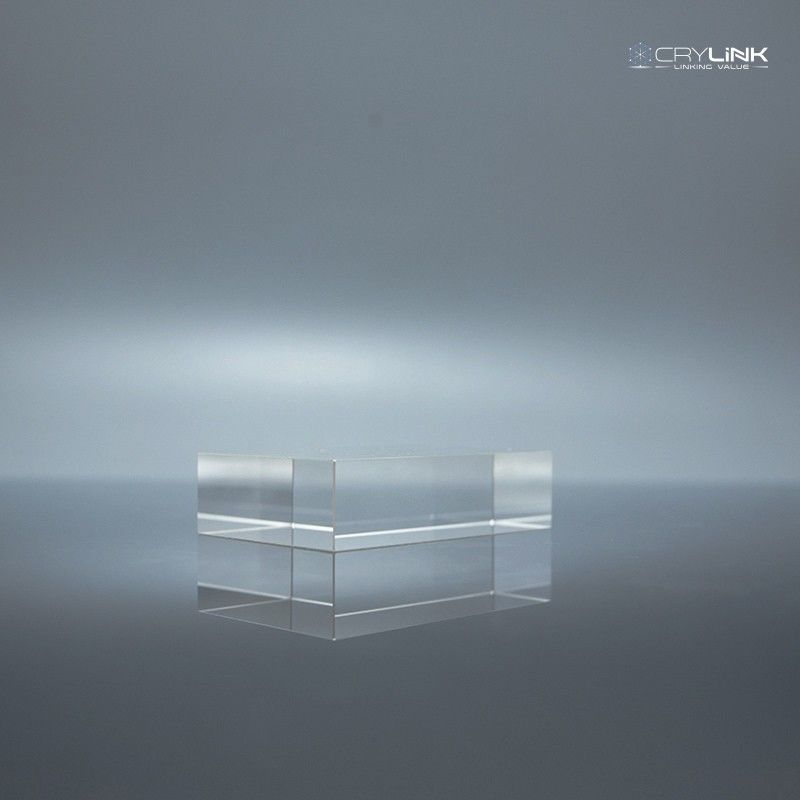

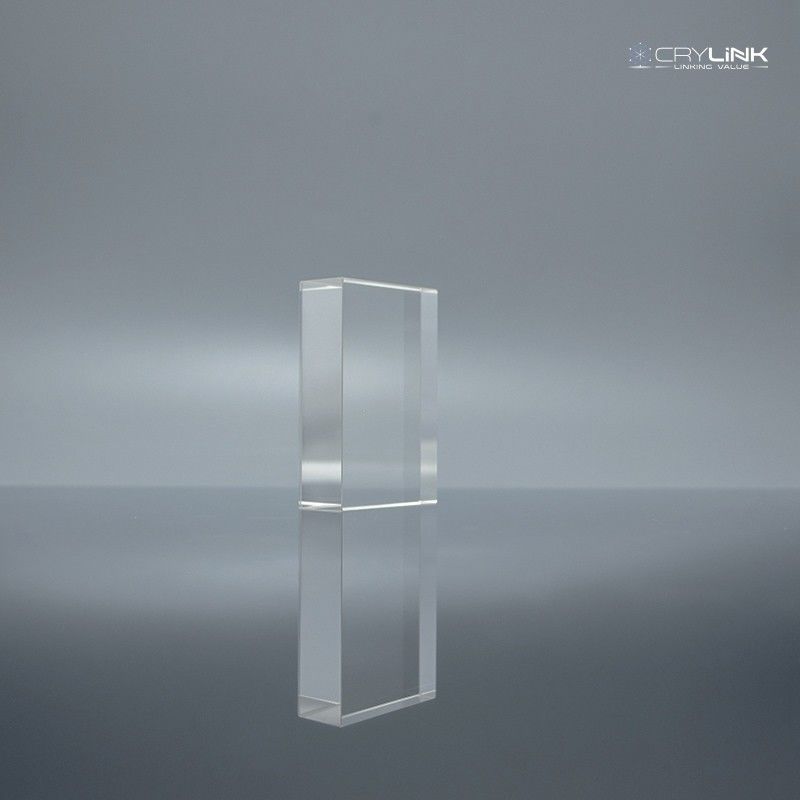

TeO2 Paratellurite Tellurium Dioxide / Acousto Optic Crystal Material

Basic Information
Place of Origin: China
Brand Name: CRYLINK
Certification: Iso9001
Model Number: CRYLINK-TeO2 Crystal
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Carton
Delivery Time: 3-4 weeks
Payment Terms: TT
Supply Ability: 100 pieces /month
Detail Information
Name: TeO2 Molar Mass: 159.60 G/mol
Color: Colorless Density: 5.990.03 /cm3
Melting Point: 733°C Hardness: 3 4 Moh’s Hardness Scale
High Light:

magnesium aluminate spinel

,

co spinel


Product Description

Tellurium Dioxide (TeO2, Paratellurite)is an excellent acousto-optic crystal material, it is widely applied in the production of Acousto-optic modulator (AOM), Acousto-optical deflector(AOD), Acousto-optical deflector(AOD), Laser Q-switches, RF spectrum analyzers in laser technology science and optoelectronic technology because of its high figure of merit ,which depended on high elastic coefficient and high refractive index. TeO2 acousto-optic deflectors are more suitable for acousto-optic effects with high diffraction efficiency, long bandwidth and high beam deflection speed. TeO2has been widely used to fabricate anomalous acousto-optic devices.


Chemical and physical properties

Property Value
Chemical formula TeO2
Molar mass 159.60 g/mol
Color Colorless
Density 5.990.03 /cm3
Melting Point 733°C
Hardness 3 4 Moh’s hardness scale
Thermal expansion 10-6-1: 11 = 17.7; 22 = 17.7; 33 = 5.5
Symmetry Tetragonal, 422 (D4)
Lattice distances a = 4.8122 ; c = 7.6157
Transmittivity >70% at 633nm
Transmitting Range 0.33 ~ 5.0 microns

Refractive indexes

, m no ne n = ne no
0.4047 2.4315 2.6167 0.1852
0.4358 2.3834 2.5583 0.1749
0.4678 2.3478 2.5164 0.1686
0.4800 2.3366 2.5036 0.1670
0.5086 2.3150 2.4779 0.1629
0.5461 2.2931 2.4520 0.1589
0.5893 2.2738 2.4295 0.1557
0.6328 2.2597 2.4119 0.1522
0.6438 2.2562 2.4086 0.1524
0.690 2.2450 2.3955 0.1505
0.800 2.226 2.373 0.147
1.00 2.208 2.352 0.144
Optical activity, along [001]
um p, deg/mm m p, deg/mm
0.3698 587.1 0.5893 104.9
0.3783 520.6 0.6328 86.9
0.3917 437.4 0.700 67.4
0.4152 337.6 0.800 48.5
0.4382 271.0 0.900 37.4
0.4630 221.1 1.00 29.5
0.4995 171.2 1.10 23.8
0.5300 143.4
Acoustooptical properties
Nsound Usound Vsound 103 / Nlight Elight M1 10-7m2 / M2 10-183/
[100] [100] 2.98 [010] [100] 0.097 0.048
[100] [100]   [010] [001] 22.9 10.6
[001] [001] 4.26 [010] [100] 142 34.5
[001] [001]   [010] [001] 113 25.6
[100] [010] 3.04 [001] optional 3.70 1.76
