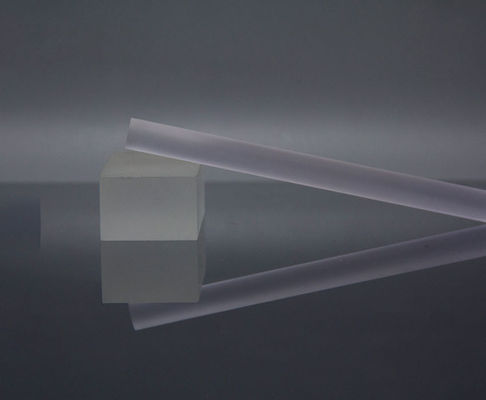

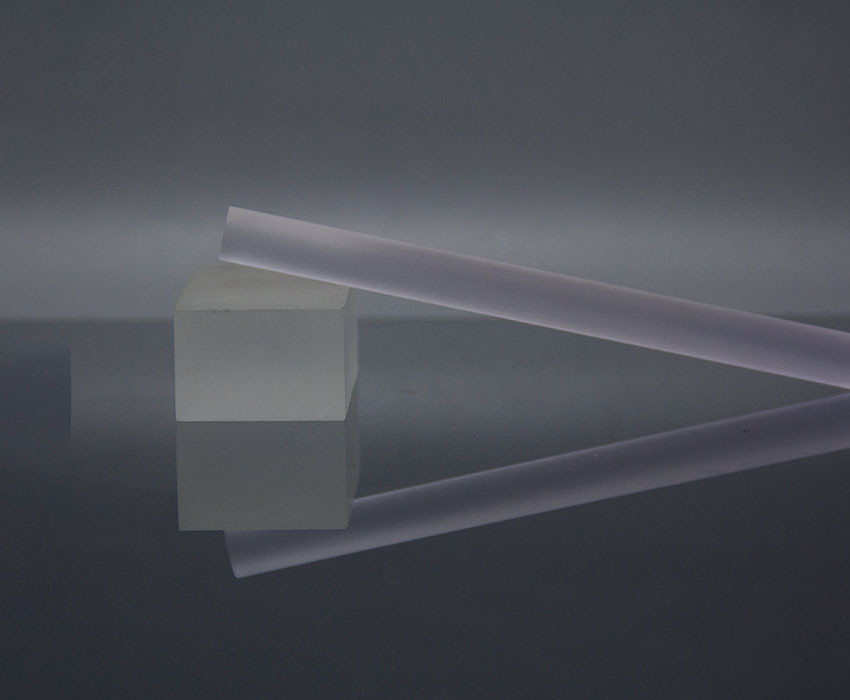

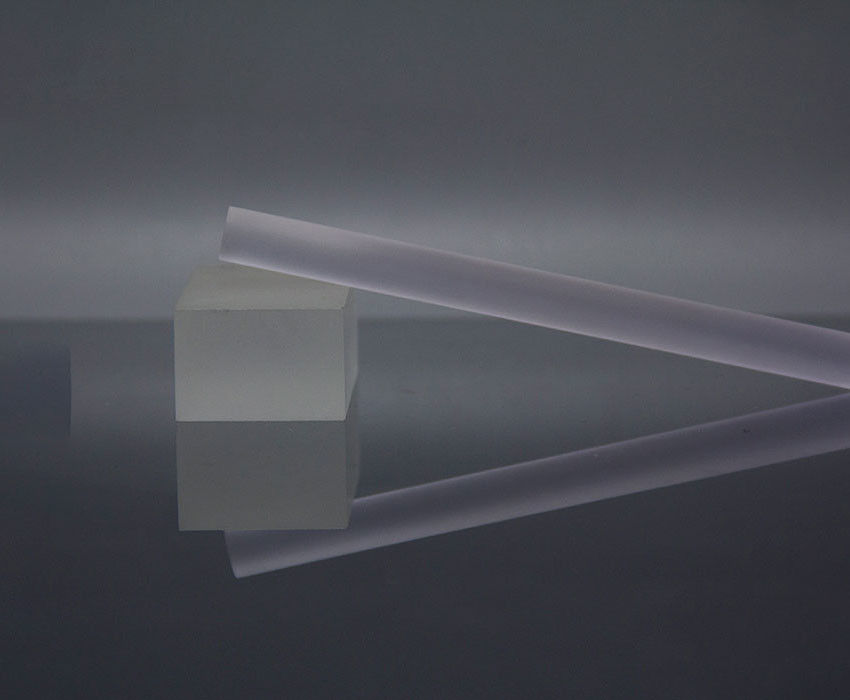

Preamplifier 1053nm Q Switched Fluoride Nd YLF Crystal

Basic Information
Place of Origin: China
Brand Name: CRYLINK
Certification: lso9001
Model Number: Nd:YLF-Crystal
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton
Delivery Time: 3-4 weeks
Payment Terms: T/T
Supply Ability: 1000 pieces /month
Detail Information
Parallelism: <10〞 Structure Symmetry: Tetragonal, I41/a
Specific Mass: 3.99g/cm3 Dopant Concentration(%): 0.5-1.5
Fluorescent Lifetime(µs): 485@1%Nd Doping Application: YLF Lasers,Lens,Pump With Xenon Flashlamps
Feature: High UV Transparency Melting Point: 819°C
High Light:

Fluoride Nd YLF Crystal

,

Q Switched Nd YLF Crystal

,

1053nm Nd YLF Crystal


Product Description

Nd-YLF-Crytal



►Description



Neodymium-doped Lithium Yttrium Fluorides (Nd:LiYF4 or Nd:YLF) is a crystal which lasers at 1047 nm and 1053 nm wavelength. Its main advantages are: large fluorescence line width, low thermal lensing, low threshold for CW applications and naturally polarized oscillation, which makes Nd:YLF an excellent material for CW, mode locked operation. The term YLF laser is usually used for lasers based on neodymium-doped YLF (Nd3+:YLF) crystals, although there are other rare-earth-doped YLF crystals, e.g. with ytterbium, erbium, thulium, holmium or praseodymium doping. YLF is the acronym for yttrium lithium fluoride (YLiF4). Due to the similar size, yttrium ions can be replaced with laser-active rare earth ions without strongly affecting the lattice structure. YLF is birefringent, which eliminates thermally induced depolarization loss. Also, the gain and the emission wavelength of Nd:YLF are polarization-dependent: there is the stronger 1047-nm line for π polarization, and a weaker one at 1053 nm for σ polarization. The 1053-nm line fits well to the gain peak of Nd:glass, which makes Nd:YLF seed lasers and preamplifiers suitable for Nd:glass amplifier chains. There are additional transitions at 1321 nm (π) and 1313 nm (σ), which allow for, e.g., red light generation via frequency doubling. The negative thermo-optic coefficient dn / dT leads to a defocusing thermal lens, which may be approximately compensated by the focusing lens from bulging of the end faces, if a suitable design is chosen. Nd:YLF lasers can be diode-pumped or lamp-pumped. Compared with Nd:YAG (→ YAG lasers), Nd:YLF has a lower thermal conductivity, but nevertheless exhibits weaker thermal distortions (due to the weakly negative dn / dT), thus allows a better beam quality, has significantly anisotropic thermal expansion and a lower fracture resistance (limiting the output power), and a longer upper-state lifetime (which is favorable for, e.g., diode-pumped Q-switched lasers with high pulse energy). Another remarkable feature is the high UV transparency, which is favorable for pumping with xenon flashlamps.



►Features



  • High UV transparency
  • Additional transitions at 1321 nm (π) and 1313 nm (σ), which allow for, e.g., red light generation via frequency doubling
  • Birefringent, which eliminates thermally induced depolarization loss
  • The gain and the emission wavelength are polarization-dependent
  • The 1053-nm line fits well to the gain peak of Nd:glass
  • Negative thermo-optic coefficient dn/dT leads to a defocusing thermal lens
  • Low thermal conductivity, but nevertheless exhibits weaker thermal distortions
  • Significantly anisotropic thermal expansion and a lower fracture resistance and a longer upper-state lifetime

►Application



  • YLF lasers
  • Nd:YLF seed lasers and preamplifiers
  • Lens
  • Diode-pumped or lamp-pumped
  • Diode-pumped Q-switched lasers
  • Pump with xenon flashlamps

►Parameter



  • Material and Specifications
Parallelism <10〞
Perpendicularity <5ˊ
Surface Quality better than 10/5 Scratch/Dig per MIL-O-13830A
Wavefront Distortion <λ/4 per inch@632.8 nm
Surface Flatness <λ/10 @632.8 nm
Clear Aperture Central 90%
Diameter Tolerance +0.0/-0.1 mm
Length Tolerance +/-0.5mm
Chamfer 0.15mm@45°
  • Physical and Chemical Properties
Structure Symmetry Tetragonal, I41/a
Lattice Constants a=5.16, c=10.85 Å
Specific mass 3.99g/cm3
Melting Point 819°C
Thermal Conductivity /(W·m-1·K-1) 6.3
Specific Heat(J·g-1·K-1) 0.79
Thermal Expansion /(10-6·K-1 ) 8.3(⊥c), 13.3(||c)
Hardness (kg/mm2@Mohs) 4~5
Young`s Modulus /(108g/cm2) 7.65
  • Optical characteristics
Dopant Concentration(%) 0.5-1.5
Transmission Range 0.18 … 6.7 µm
Refractive Index (@1053nm) No=1.448, ne=1.470
Loss Coefficient/cm <0.003@1064nm
Thermo-optic Coefficient(10-6·K-1@ ) -2.0(E⊥c), -4.3 (E||c)
Scatter Loses(%/cm) <0.2
Fluorescent Lifetime(µs) 485@1%Nd doping
Peak Emission Cross Section(10-19/cm2) 1.2(E⊥c)@1053nm, 1.8(E||c)@1047nm
Lasing Wavelength(nm) 1053(E⊥c, σ-pol), 1047(E||c, π-pol)
Peak Absorption Wavelength@1.2%Nd (cm-1) 10.8(792.0nm, E||c), 3.59(797.0nm, E⊥c)
  • Index of Refraction



λ(nm) no ne
262 1.464 1.442
350 1.47 1.448
525 1.479 1.456
1050 1491 1.473
2065 1.511 1.485

Preamplifier 1053nm Q Switched Fluoride Nd YLF Crystal 0Preamplifier 1053nm Q Switched Fluoride Nd YLF Crystal 1Preamplifier 1053nm Q Switched Fluoride Nd YLF Crystal 2Preamplifier 1053nm Q Switched Fluoride Nd YLF Crystal 3
